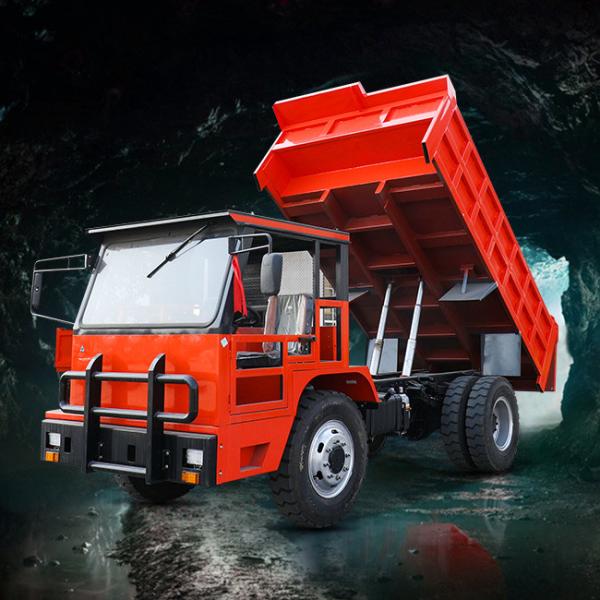

    4x2 Underground Articulated Truck Heavy Mine Wheel Cargo Transporter 15 Tons

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-15
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 7-18 days
    • Product Details
    • Company Profile

    4x2 Underground Articulated Truck Heavy Mine Wheel Cargo Transporter 15 Tons

    Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck


    It is suitable for complex road conditions such as mines, underground tunnel mining areas, construction sites, muddy roads, project construction, swamps, river beaches, deserts, paddy fields. The mining dump trucks can be used to transport ore, cement, grains and other heavier goods and drive in all kinds of road.


    UQ-15 has superior waterproof performance, the whole vehicle lines and electrical appliances are sealed with high waterproof section, which effectively avoids leakage due to multi-water in the tunnel. All underground dump truck configurations can be customized according to customer requirements to adapt to different lanes, different environments and different gradients.


    Large angle steering, small turning radius, suitable for narrow and multi-bend complex road conditions. Formal frame is adopted in China, which has better flexibility than traditional frame and remains unchanged after heavy pressure. The compartment of underground dump truck can be divided into two types: backward tipping and side tipping. The piston rod motion is controlled by operating system, and backward tipping is more common. The piston rod pushes the piston rod to tilt the compartment. A few of the two-way tipping occurs. High-pressure oil enters the lifting hydraulic cylinder through distribution valve and oil pipe. The front of the compartment has cab safety shield.


    We promised to provide you with the first-class items and service,to build the first-class team,to create first-class wvalues and to establish first-class enterprise image.We believe that we are able to be the main force of construction machinery field by the effort of all of our staff.


    ModelUQ-15
    Engine ModelYUCHAI 4108 with Turbocharge
    Engine Power118KW/160HP
    Total Dimension5600*2300*2000mm
    Transmission ModelFASITE 8JS118
    Transmission Gear8 Forward Gear, 1Back Gear,Rear High Speed Controller
    Drive Mode4x2
    Front Axle Model1098
    Rear Axle Model153
    Tire Model825-16 Radial steel tire,
    Rear Double Tyre One Side,
    No.of Bottom Spring PlateFront 12 PCS, Rear 10PCS, Spare 8PCS
    Dimension of Bottom Spring PlateLength 90mm, Width 16mm
    Size of the Bucket:Length×width×height4000mm*2200mm*800mm
    Type of BucketU Type
    Thickness of Bucket Steel Platebottom 10mm side 8mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinCanopy
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity15 Tons
