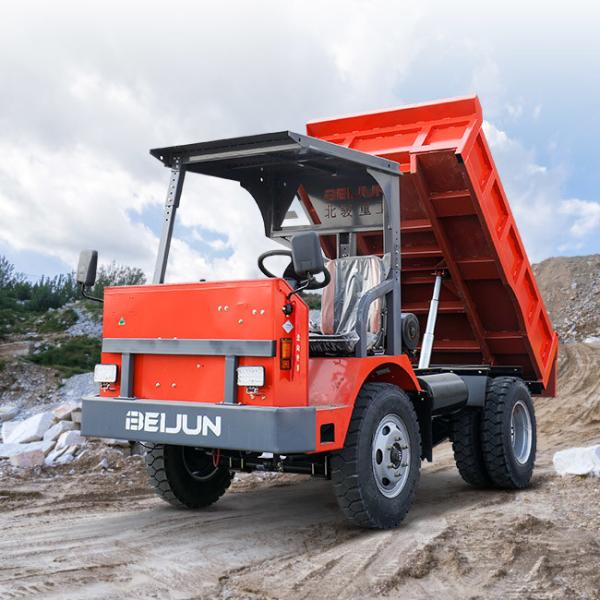

3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    Buy cheap 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel from wholesalers

    Buy cheap 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel from wholesalers
    • Buy cheap 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel from wholesalers
    • Buy cheap 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel from wholesalers
    • Buy cheap 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel from wholesalers
    • Buy cheap 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel from wholesalers
    • Buy cheap 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel from wholesalers

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-3
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1500 Set/Sets per Month
    Delivery Time : 8-16 days
    • Product Details
    • Company Profile

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    Product parameters of 3 Ton Mini Wheel Dumper Truck Use Vehicle Hydraulic Diesel Underground Mine Small Dump Truck For Mining


    Underground trucks are also known as underground mining trucks, underground dump trucks. BEIJUN underground mining trucks are designed to transport rock material safely, efficiently and reliably in extreme conditions. The underground trucks are rugged, compact and powerful, offering payloads from 3 to 60 tons, and operating at a low cost per tonne. A reliable, hard-working dump truck specifically designed for underground conditions. With a highly efficient power and drive-train combined with low rolling resistance Superior fuel efficiency.


    UQ-3 underground mining trucks are designed for high production, low cost-per-ton hauling in underground mining applications. Rugged construction and simplified maintenance guarantee long life with low operating costs. It is designed for high production, low cost-per-ton hauling in smaller underground mining applications. Rugged construction and easy maintenance guarantee long life with low operating costs. Engineered for performance, designed for comfort, built to last.


    ModelUQ-3
    Engine ModelCHANGCHAI 490
    Engine Power63 HP
    Transmission ModelNingjing 130
    Transmission Gear4 Forward Gear, 1Back Gear,Rear High Speed Controller
    Drive Mode4x4
    Front Axle ModelCHITONG ISUZU Axle
    Rear Axle ModelCHITONG ISUZU Axle
    Tire Model700x16 Line Tire,
    Rear Single Tyre One Side,
    No.of Bottom Spring PlateFront 7 PCS, Rear 8 PCS, Spare 6PCS
    Dimension of Bottom Spring PlateLength 70mm, Width 10mm
    Size of the Bucket:Length×width×height2400mm*1300mm*450mm
    Type of BucketU type Bucket
    Thickness of Bucket Steel Platebottom 6mm side 4mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinCanopy
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity3 Tons

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel

    Quality 3 Ton Underground Articulated Truck Automatic Diesel Engine Mine For Tunnel for sale
