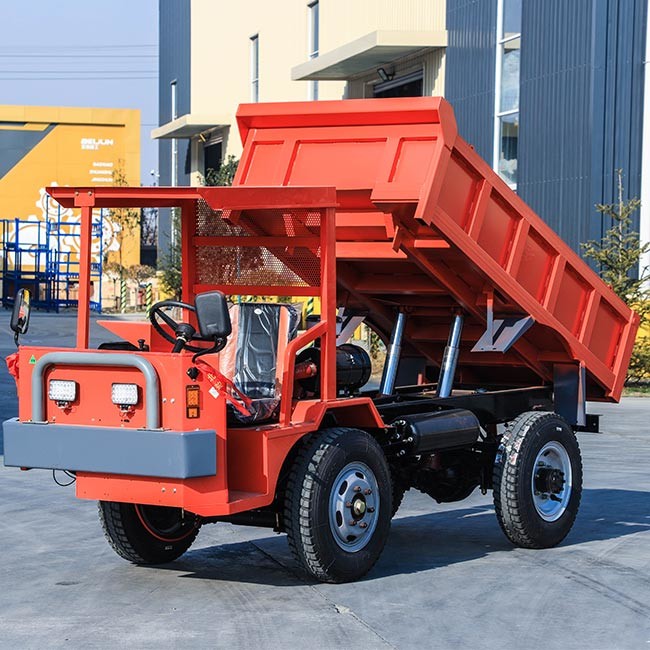

    Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-5
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Delivery Time : 9 - 16 days
    • Product Details
    • Company Profile

    Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2

    Product Parameters Of 5 Ton Underground Dump Truck


    This 5 ton dumper truck is professionally designed according to the characteristics of underground mining. four-wheel drive ,Low speed torque strong climbing ability. Four-wheel spring plate shock absorption, Four-wheel solid tire with Strong carrying capacity,8MM thinkness steel plate for the bucket.Double hydraulic cylinder steering,easy to operating.Exhaust gas treatment of metal catalysis and filtering devices, effectively reducing emissions.side cab driving design can be lower the height for this dumper truck.


    we manufacture and supply a full range of heavy equipment components and equipment attachments to the global customers who are looking for high quality parts of construction equipment including bulldozers, excavators, diggers, loaders, and industrial trucks.

    ModelUQ-5
    Engine ModelFAW - 4DW92-73
    Engine Power54KW/73HP
    Transmission ModelWANLIYANG 530
    Transmission Gear5 Forward Gear, 1Back Gear,Rear High Speed Controller
    Drive Mode4x2
    Front Axle Model1069
    Rear Axle Model1069
    Tire Model700x16 Line Tire,
    Rear Double Tyre One Side,
    No.of Bottom Spring PlateFront 10 PCS, Rear 10 PCS, Spare 6PCS
    Dimension of Bottom Spring PlateLength 70mm, Width 100mm
    Size of the Bucket:Length×width×heightU type Bucket 2801mm*1601mm*551mm
    Type of Bucket
    Thickness of Bucket Steel Platebottom 8mm side 6mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinCanopy with Glass and Rain Bush
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity6 Tons

    Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2Portable 5 Ton Articulated Truck Underground Mining Transportation Tipper 4*2
