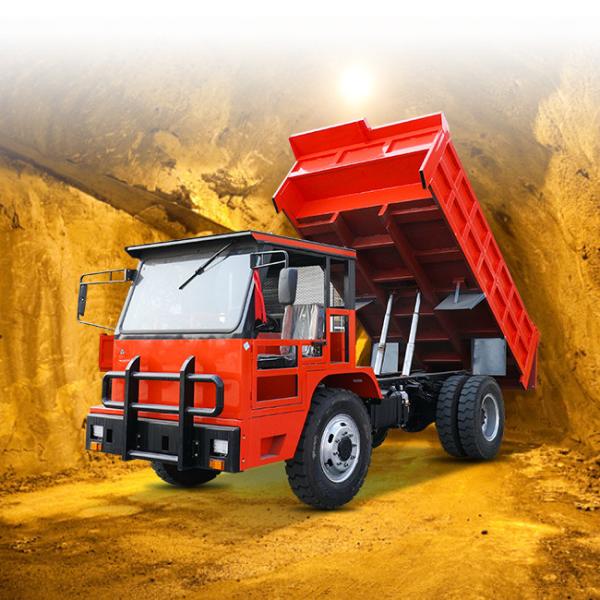

    15 Ton Underground Dump Truck For Safe And Convenient Cargo Placement

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-15
    Certification : CE,ISO
    Price : USD 5000-15000 Set
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 10-20 days
    • Product Details
    • Company Profile

    15 Ton Underground Dump Truck For Safe And Convenient Cargo Placement

    Product parameters of Loading Capacity 15 tons Underground Mining Dump Truck


    Mining Dump Trucks belong to off highway dump trucks, which are dump trucks used for transporting coal mines and sand in non highway outdoor sites, such as large open-pit mines and hydraulic engineering. In civil engineering, it is often combined with construction machinery such as excavators, loaders, and belt conveyors to form a loading, transportation, and unloading production line for the loading, unloading, and transportation of soil, sand, and bulk materials.The mining dump truck mainly consists of an engine, chassis, control compartment (front), generator system, body (actuation system), and auxiliary power system.


    The characteristics of mining dump trucks are: large tonnage, low consumption, high technical content, and expensive price.
    Classified by transmission mode: Mining dump trucks can be divided into electric wheel mining dump trucks and mechanical transmission mining dump trucks. The light weight of electric wheel mining dump trucks is generally below 108 tons, and the heavy weight is generally between 108-360 tons; Mechanical transmission mine dump trucks are generally below 85 tons, and heavy-duty trucks are generally between 85-318 tons. In the 1970s, due to the lack of large hydraulic torque converters, mining dump trucks weighing over 100 tons were completely dominated by electric transmission. With the maturity of large hydraulic torque converters, Caterpillar in the United States has launched a 360 ton hydraulic transmission mining dump truck. In the mid-1990s, AC-AC direct electric transmission technology began to be applied to 300 ton mining dump trucks.


    ModelUQ-15
    Engine ModelYUCHAI 4108 with Turbocharge
    Engine Power118KW/160HP
    Total Dimension5600*2300*2000mm
    Transmission ModelFASITE 8JS118
    Transmission Gear8 Forward Gear, 1Back Gear,Rear High Speed Controller
    Drive Mode4x2
    Front Axle Model1098
    Rear Axle Model153
    Tire Model825-16 Radial steel tire,
    Rear Double Tyre One Side,
    No.of Bottom Spring PlateFront 12 PCS, Rear 10PCS, Spare 8PCS
    Dimension of Bottom Spring PlateLength 90mm, Width 16mm
    Size of the Bucket:Length×width×height4000mm*2200mm*800mm
    Type of BucketU Type
    Thickness of Bucket Steel Platebottom 10mm side 8mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinCanopy
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity15 Tons
