    Rock Loading Crawler Mucking Loader Environmental Protection ZWY-50A

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : ZWY-50A
    Certification : CE,ISO,TUV
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 14-30 days
    • Product Details
    • Company Profile

    Rock Loading Crawler Mucking Loader Environmental Protection ZWY-50A

    The mucking loader integrates multiple functions, including excavation, conveying, loading, and running, providing up to 35% more efficiency in tunnel construction. Its ability to adapt to various spaces and less pollution to the air inside the tunnel makes it an essential mechanical equipment for tunnel construction.

    The electric hydraulic control system of the mucking loader contains five functions: hydraulic walking, mining acquisition, transportation, loading, and bottom clearing, providing up to 35% more versatility and control during operation. The dual-drive device, electrical installation, and diesel installation offer up to 35% more flexibility in power options, making it suitable for different working conditions.

    The load sensing hydraulic priority system of the mucking loader provides up to 35% more stability and reliability during operation, while also conserving energy. Its reasonable gear ratio matching reduces power consumption, providing up to 35% more efficiency during operation.

    The mucking loader's simple structure and reliable performance offer up to 35% more ease of use and maintenance. Its semi-enclosed assembling provides up to 35% more convenience for maintenance and repair.

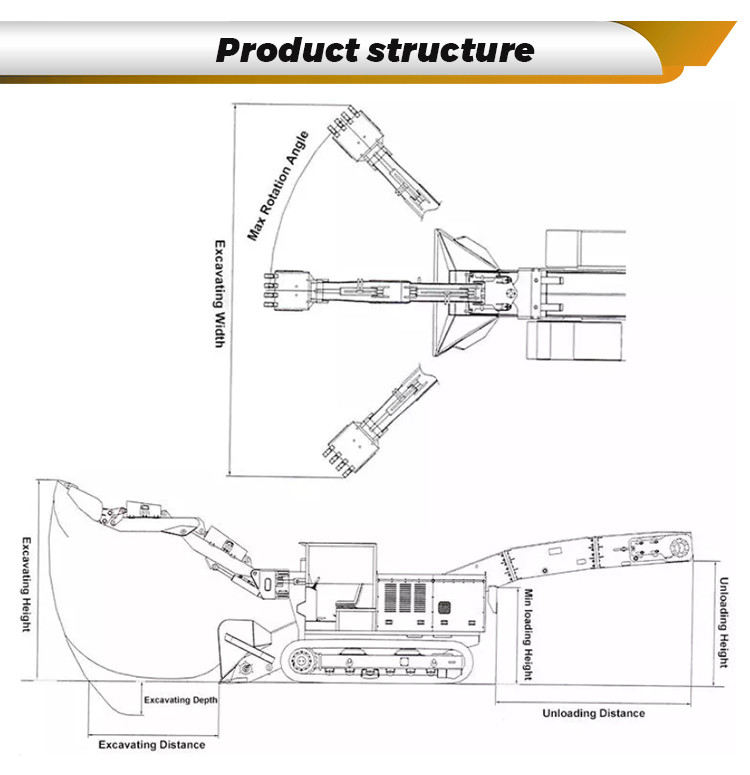

    Model(wheel type)ZWY-50AZWY-60AZWY-80A
    Traveling Speed2km2km2km/h
    Ground Clearance200mm200mm220mm
    Wheel Tread1380mm1480mm1700mm
    Wheel Base1500mm1500mm1600mm
    Rated Working Pressure16mpa16mpa16Mpa
    Big Arm Maximum Turning Angle±73º±73º±73º
    Total Motor Power11+4kw11+4kw15+4kw
    Maximum Material Dimension650*500*500mm600*500*500650*600*500mm
    Adaptive Tunnel Gradient≤15º≤15º≤15º
    Belt Speed0.63m/s0.63m/s0.63m/s
    Overall Dimensions4600*1380*1600mm5200*1500*1600mm6150*1750*1700mm
    Machine Weight3100kg3400kg3400kg
    Minimum Turning Radius4m4m4.5m
    Digging Width2000mm2400mm2400mm
    Digging Height1700mm1900mm2100mm
    Digging Depth700mm700mm700mm
    Digging Distance1300mm1550mm1800mm
    Dumping Height1400-1700mm1480-1700mm1700-1900mm
    Dumping Distance1400mm1400mm1900(can be raised)
    Grade ability≤15º≤15º≤15º
    Adaptive Tunnel Minimum Fracture>1.6*1.8m1.8*2m2*2.4m
