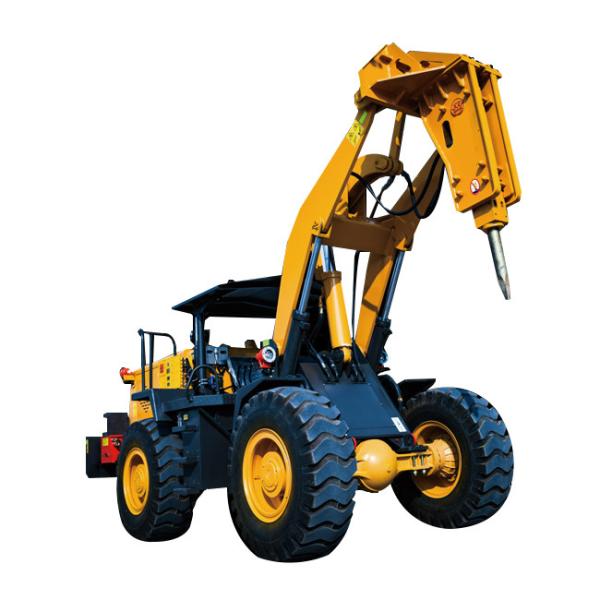

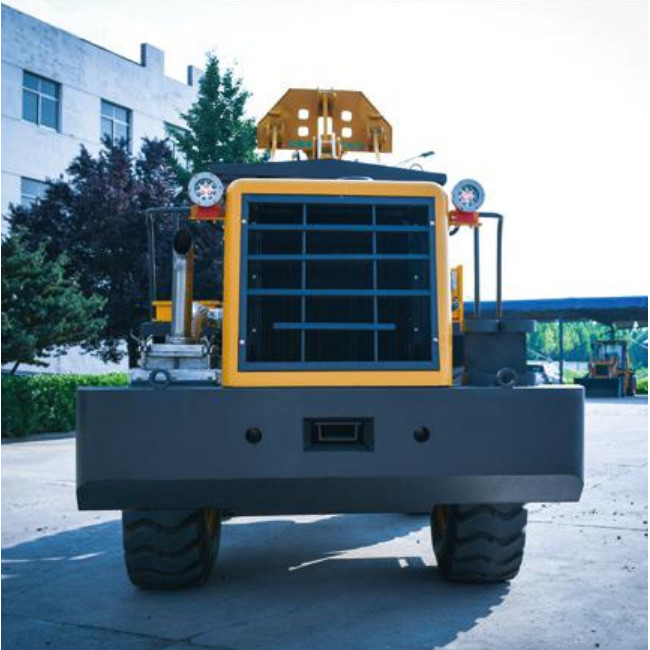

    High Reliability Underground Mining Loader With Breaking Hammer JC935CD

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : JC935CD
    Certification : CE,ISO,TUV
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 14-30 days
    • Product Details
    • Company Profile

    High Reliability Underground Mining Loader With Breaking Hammer JC935CD

    Product features

    The main components are all classical configurations that have been tested for many years, with simple structure, high reliability, good versatility, large retention and simple maintenance, it is a loader suitable for underground operation.

    The whole machine has the following characteristics

    1, Adopting mature and classic transmission parts, the fixed axle box and the engine achieve the best match, energy saving and high efficiency.

    2, 2600mm wheelbase, flexible and adaptable to the site.

    3, Adjustable height simple driving shed, smoke filtration system.


    Main performance parameters


    Itemparameters
    Bucket capacity(m³)1.7
    Bucket lifting time(S)≤4.5
    Bucket unloading time(S)≤1.2
    Forward I speed(km/h)0-7.5
    Forward III speed(km/h)25
    Backward I speed(km/h)0-9
    Tire specification17.5-25
    Working mass of the machine(Kg)10000
    Maximum unloading height(mm)2750
    Wheelbase(mm)2700
    Breaking hammer specificationTF100V
    Breaking hammer frequency(bpm)400-850
    Rated load capacity(kg)3000
    Bucket lowering time(S)≤3.0
    Maximum turning angle (°)34
    Forward II speed(km/h)0-13
    Forward IV speed(km/h)36
    Backward II speed(km/h)0-28
    Rated power of engine(KW)92
    Length x width x height(mm)7070X2250X2500
    Corresponding unloading distance(mm)900
    Wheelbase(mm)1770
    Weight of crushing hammer(Kg)525
    Brazing rod diameter(mm)85
