    54KW/73HP Hydraulic Dump Truck 5 Tonne Tipper Truck In Narrow Spaces

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-5
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

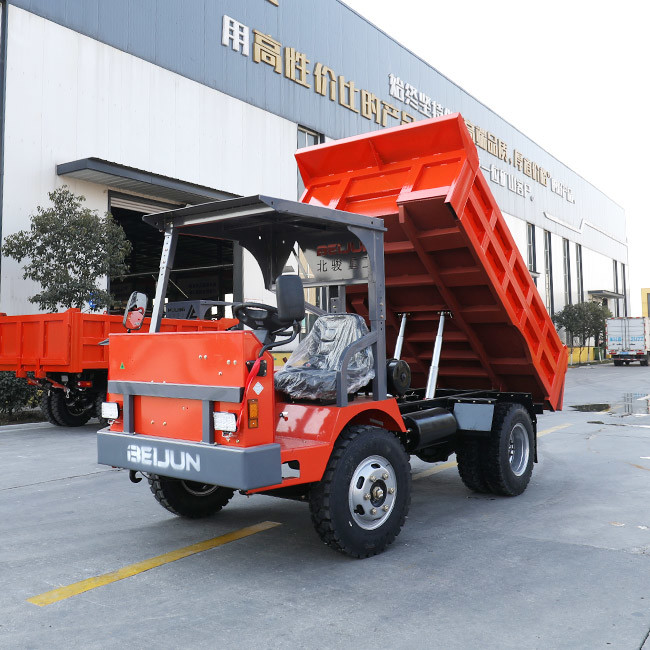

    54KW/73HP Hydraulic Dump Truck 5 Tonne Tipper Truck In Narrow Spaces

    Product parameters of 5 Ton Mining Dump Truck


    Compact and Agile Design: The Beijun underground tunnel dump truck boasts a compact and agile design, featuring a small turning radius and a specially designed cab, suspension frame, and cargo compartment. This allows it to maneuver with ease in narrow spaces, such as underground roadways and ramps.


    Enhanced Safety Features: The dump truck is equipped with improved lamps and electrical components that are waterproof and moisture-proof, as well as specialized anti-slippery tires. These features enhance its obstacle-crossing capability and ensure high safety in the underground environment, which can be dangerous due to poor lighting, slippery surfaces, and other hazards.


    Powerful Performance: The Beijun underground tunnel dump truck is powered by a robust engine with large torque, excellent grade, and starting performance. This enables it to transport heavy loads efficiently in the underground environment, where the terrain can be challenging.


    High Bearing Capacity and Durability: The dump truck is designed based on mining vehicle design concepts, with a bearing capacity that is 1.5 times that of ordinary road vehicles. Moreover, it is built with durable materials and components, ensuring its longevity and reliability in harsh underground conditions.


    ModelUQ-5
    Engine ModelFAW - 4DW92-73
    Engine Power54KW/73HP
    Transmission ModelWANLIYANG 530
    Transmission Gear5 Forward Gear, 1Back Gear,Rear High Speed Controller
    Drive Mode4x2
    Front Axle Model1069
    Rear Axle Model1069
    Tire Model700x16 Line Tire,
    Rear Double Tyre One Side,
    No.of Bottom Spring PlateFront 10 PCS, Rear 10 PCS, Spare 6PCS
    Dimension of Bottom Spring PlateLength 70mm, Width 100mm
    Size of the Bucket:Length×width×heightU type Bucket 2800mm*1600mm*550mm
    Type of Bucket
    Thickness of Bucket Steel Platebottom 8mm side 6mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinCanopy with Glass and Rain Bush
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity6 Tons

    54KW/73HP Hydraulic Dump Truck 5 Tonne Tipper Truck In Narrow Spaces54KW/73HP Hydraulic Dump Truck 5 Tonne Tipper Truck In Narrow Spaces54KW/73HP Hydraulic Dump Truck 5 Tonne Tipper Truck In Narrow Spaces
