    ISO 9 Persons Underground Mining Transport Vehicles Passenger Transporter

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : RU-9
    Certification : CE,ISO,TUV
    Price : USD 45000-50000 Set
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 14-30 days
    • Product Details
    • Company Profile

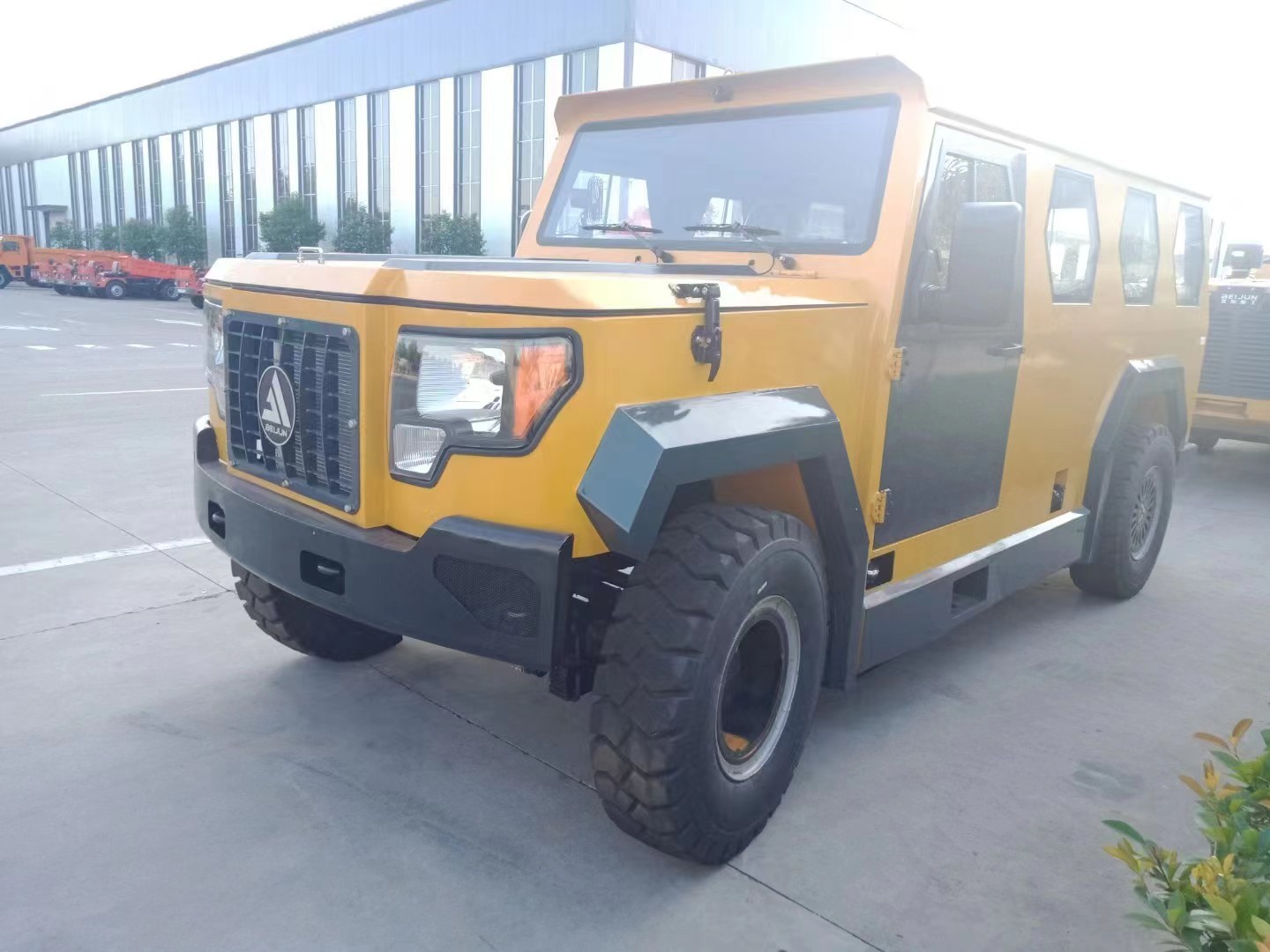

    ISO 9 Persons Underground Mining Transport Vehicles Passenger Transporter

    Mining Man Car Coal Mine Transporter Man Dolly Man Cart Underground Passenger Underground Personnel Carrier


    RU-9 Personnel Carrier
    Technical Parameter
    ItemParameterItemParameter
    Dimensionh( Length*Width*Height)(mm)4950x2000x2200Climbing Ability (Heavy Load)(°)14
    Curb Weight(kg)4050Departure Angle(°)25
    Rated Man Load( Including Driver)9Axle Distance(mm)3200
    Rated Load(kg)900Front Track(mm)1730
    Maximum Traction Force(kN)15Rear Track(mm)1730
    Minimum Turning Radius (Outside)6800Maximum Forward Speed( Km/h)30
    Minimum Ground Clearance(mm)250Maximum Reverse Speed( Km/h)15
    Main Configuration
    ItemParameterItemParameter
    Diesel Engine BrandDongfeng EngineShock Absorption SystemHydro-pneumatic Spring
    Diesel Engine ModelZD30Damping Bow
    Diesel Engine Power110kWCabClosed Cab
    Diesel Tank Capacity48LAir Conditioning SystemAir Conditioner
    Air FilterDry Three Stage FiltrationInstrument TypeLCD Meter
    Exhaust PurificationDOC+ SilencerRear View CameraRear Camera
    Hydraulic PumpDanfossCab Overhead LightBuilt-in Switch(24V)
    S90R75Head Light NumberSix(Two in the Front + Four on the Top)
    Hydraulic MotorDanfossHead Light FunctionSwitch between Far and Near Light
    S90R75Rear LightDriving Light, Steer Light
    Transfer CaseTwo Gear ShiftsReverse Light, Brake Light
    AxleCarraroWiperDual Wipers with High and Low Speed
    Spring Brake Hydraulic ReleaseParking Brake TypeAUTO Hold
    Service Brake, Parking BrakeCompartmentIntegrated with Cab
    TyreEngineering TiresOTRFlat Seat
    9.00-16Compartment Carrying CapacitySeven
