    Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UPS-20J
    Certification : CE,ISO,TUV
    Price : USD 45000-50000 Set
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 13-31 days
    • Product Details
    • Company Profile

    Concrete Transport Shotcrete Spraying Machine 4×4 Easy Maintenance

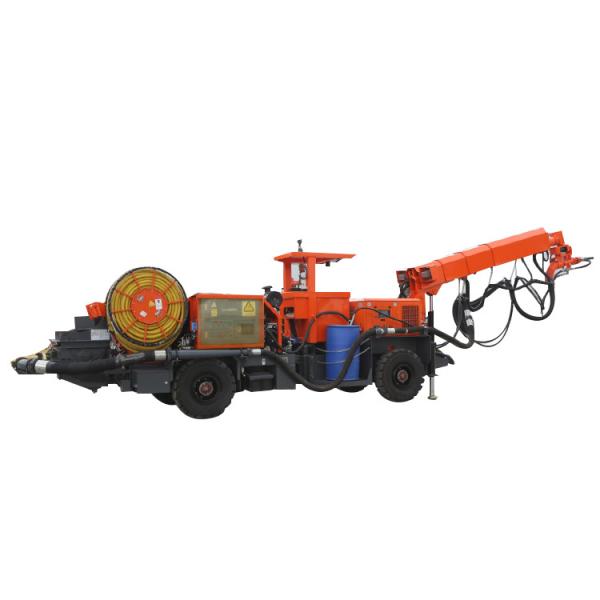

    UPS-20J Mining Concrete Sprayer

    • Carrier complies with current underground specifications for mobile equipment operating on steep inclines
    • Operator friendly spraying controls provide flexibility and high productivity
    • Reduced airborne dust compared to dry spraying method
    • Ease of maintenance with electronic engine diagnostics, accessible fuel filling and grease points
    • Robust shotcrete pump allows machine to accommodate larger aggregate so that it can operate as a conventional concrete pumper

    Whole machine(L×W×H )mm7500 ×2145×2500
    Weightkg13500
    Electrical motor powerkW37/45high altitude
    Engine powerkW59
    ChassisEngine modelYCD4T23T8-80
    Front and rear axle drive-4×4
    Max. traveling speedKm/h9
    Max. tramming gradient°20
    Max. outer turning radiusmm6200
    Min. inner turning radiusmm3800
    Boom structure modeTelescopic
    Max. Spraying vertical heightm8
    Max. Spraying horizontal widthm2x6.5
    Spraying depthm2.5
    Boom pitching angle°-35-+60
    Boom telescopic scopemm2900
    Nozzle rotating angle°360
    Nozzle swing angle°240
    Boom systemTheoretical pumping capacitym3/h20
    Pumping output pressureMpa<7.5
    Pumping cylinder inner dia. ×strokemmΦ160×800
    Pumping cylinder dia.mmΦ125-Φ80
    Nozzle diametermmΦ50
    Electrical systemCablem50
    External power supply380V/50HZ
    OperationWireless remote control
    ControlControl by controller + touch screen display
    Accelerator systemAir compressor displacementm3/min8
    Air compressor working pressureMpa0.5
    Dosing max. outputL/h500
    Dosing system pressureMpa0.5
    Additive tank capacityL200
    Pick up concrete heightmm1350
