    Deutz D914L04 Engine Hydraulic Wheel Jumbo Drilling Machine 58KW DW1-24

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : DW1-24
    Certification : CE,ISO,TUV
    Price : USD 145000-200000 Set
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 14-30 days
    • Product Details
    • Company Profile

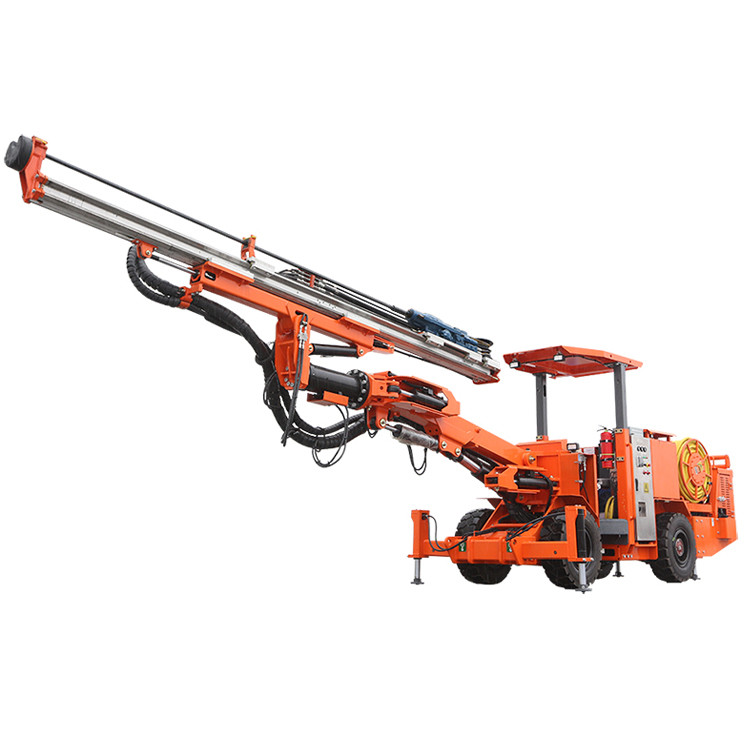

    Deutz D914L04 Engine Hydraulic Wheel Jumbo Drilling Machine 58KW DW1-24

    Features of DW1-24 Wheel Drilling Jumbo: mini compact design, especially suitable for 2.5-3.5m or even larger tunnel blast hole rock drilling operation.


    Dimensions
    L×W×H(mm)9860×1250×1880/2580
    Ground clearance(mm)250
    Total weight Kg8600
    Turning Radius mm2400/4800
    Traveling speed Km/h10


    Drifter
    Model1838ME2238
    ShankT38/T45T38/T45
    Hole diameter (mm)41-7664-76/76-89
    Max. Impact power (Kw)1822
    Impact rate (Hz)6053
    System pressure (bar)230220
    Rotation motorsIndependent rotation
    Rotation speed (rpm)0-2150-130
    Max. Rotation Torque (Nm)10701520
    Lub. air consump.(L/s)55
    Weight (Kg)170174
    Noise dB(A)<106<106
    Note: Other models are available

    Propelling beam
    ModelTF-12LATF-10LTF50-6/10L
    Total Length (mm)529447184561
    Drilling rod length (mm)370030901830-3090
    Drilling depth( mm)340027001550-2750
    Weight (including drifter) kg555490725
    Propulsion force (KN) 12 12121212
