    Energy Efficiency Compact Underground Articulated Truck 15 Tons 16 Tons

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : XTUT-15
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Energy Efficiency Compact Underground Articulated Truck 15 Tons 16 Tons

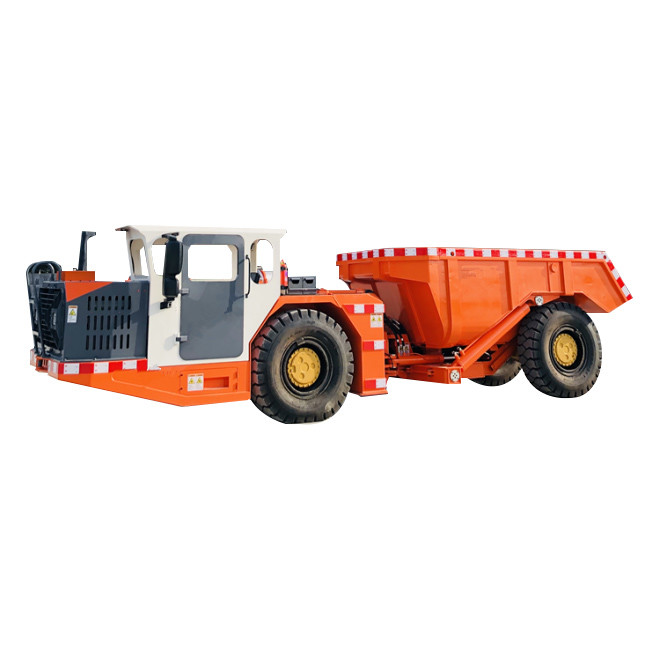

    XTUT-15 Compact Underground Mining Dump Truck With A Tramming Capacity Of 15 Tons Or 16 Tons.


    STUT-15 is a compact underground mining dump truck with a tramming capacity of 15 tons or 16 tons. It is easy to maneuver in confined area and very well suited for narrow vein mining.


    The new design of STUT-15 improves safety, maintainability and operational comfort in underground transportation, mining and construction operations. Centralized service points and module design for easy service access and fast component exchange.


    The heavy-duty front and rear frames are specially designed to cope with the harsh underground environment.


    Excellent load retention and fast tramming up speed ramps guaranteed, highest power to weight ratio in its class.


    Spacious front- drive operator compartment is ergonomically designed for maximum visibility, operator can safely control and monitor machine functions at a glance. Bidirectional canopy is optional.


    Best tipping angle in its class - 70 Degrees


    Industry standard and regulation

    设备设计所依照标准

    JB/T8436 China Underground dump truck standard

    JB/T8436地下矿用轮胎式运矿车标准

    GB21500 safety requirements of Underground dump truck standard, China

    GB21500地下矿用无轨轮胎式运矿车安全要求

    Power train动力系统

    Diesel engine

    柴油机

    VOLVO PENTA TAD850VE

    Rated power

    额定功率

    160 kW @ 2200rpm

    MAX torque

    最大扭矩

    1060 Nm @ 1350 rpm

    Number of cylinders

    气缸数

    Straight 6 cylinder

    Displacement

    排量

    7.70 L

    Cooling system

    冷却系统

    Liquid cooled

    Silicon oil clutch fan

    水冷发动机

    电子硅油离合器风扇

    Fuel System

    燃油系统

    Integrated hand oil pump,far distance arranged fuel filter

    集成手油泵,远置燃油滤清器

    Intake system

    进气系统

    Turbo charged

    dry-tyre air filter,pre-filtration +two-stage filtration

    低位涡轮增压器

    干式空气过滤,预滤+两级过滤

    Control system

    控制系统

    Fuel electronic control injection system

    燃油电子控制喷射系统

    Starting system

    启动系统

    24V 5.5kW starting motor

    24V/5.5kW启动马达

    Emission standard

    排放标准

    Euro stage Ⅲ

    欧Ⅲ

    Exhaust system

    排气系统

    DOC+POC+silencer

    DOC+POC+消音器

    Average fuel consumption,

    When loading at 50%

    平均油耗,

    负载50%时

    29.0 L/h

    Fuel tank capacity

    燃油箱容积

    300L
