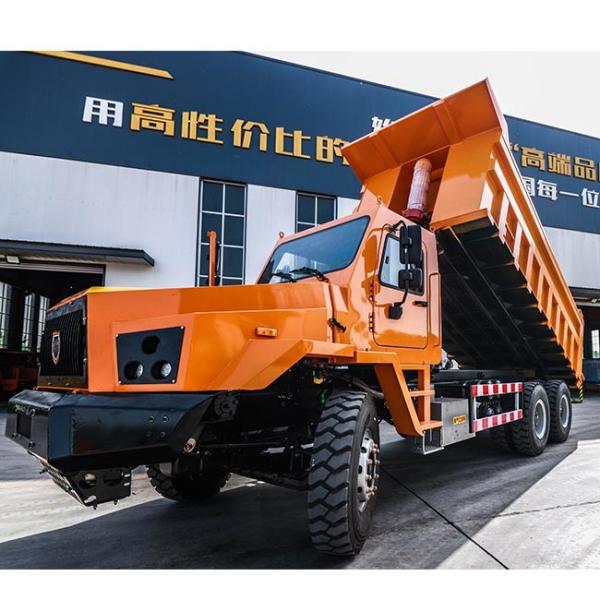

    35 Ton Underground Dump Truck 6*4

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-35
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    35 Ton Underground Dump Truck 6*4

    Product Features of 35 Tons Underground Mining 6*4 Dump Truck


    The truck Certified to mine safety standards. It have the characteristics of large traction, good climbing performance and strong transportation capacity.

    The truck Dimension is small, Suitable for working in narrow mine tunnel. Exhaust gas treatment is Water filter purifier, reducing air pollution when working in underground mines.

    Product parameters of 35 Tons Underground Mining 6*4 Dump Truck


    Specification of UQ-35 35 tons Undergroud Dump Truck
    ItemparameterItemparameter
    Dimensions (length x width x height) (mm)8650x2500x2852Minimum turning radius (outside) (mm)12000
    (The minimum optional height is 2721)
    Curb weight (kg)16500Approach angle (°)25
    Car volume (m 3 )16Gradeability (heavy load) (°)14
    Rated load (kg)35000Maximum lifting angle of carriage (°)46
    Maximum traction force (kN)250Car box lifting time (s)35
    Maximum height of the machine when unloading (mm)6000Carriage falling time (s)15
    Loading height (mm)2800Maximum forward speed (Km/h)55
    Minimum ground clearance (mm)300The maximum speed of retreating (Km/h)12.5
    Diesel engine brandYuchai EngineLarge frame type300x80x(8+8+8) cold riveted frame
    Diesel modelYC6L340-33CabinClosed Cabin
    Diesel engine power243kWAir Conditioning SystemHeating and cooling air conditioner
    Engine brakingExhaust brakeMeter typeLCD Gauge
    Air filter purificationDry three-stage filtrationradioWith USB audio interface
    Exhaust purificationWater tank purificationCab dome lightBuilt-in switch (24V)
    Gearbox brandShaanxi FastNumber of headlights6
    Transmission model10JSD220Front light functionFar and near light switch
    Transmission type10 speed gearboxtaillightDriving lights, turn signals
    Drive axle brandHand AxleReversing lights, brake lights
    Drive axle modelHand Axle 20TWiperDouble wiper with high and low speed
    Drive axle typeDual rear axle cut-off brakesParking brake typeElectronic parking
    Front axle leaf spring90x16 (11 pieces)Rear axle differential lockStandard (users activate by themselves)
    Rear axle leaf spring90x30 (12 pieces)Dumper typeU-carriage
    tire brandChaoyang TireCarriage size (mm)5400x2500x1350
    tire model12.00R20Dumper lift typeFront cylinder

    35 Ton Underground Dump Truck 6*435 Ton Underground Dump Truck 6*435 Ton Underground Dump Truck 6*4
