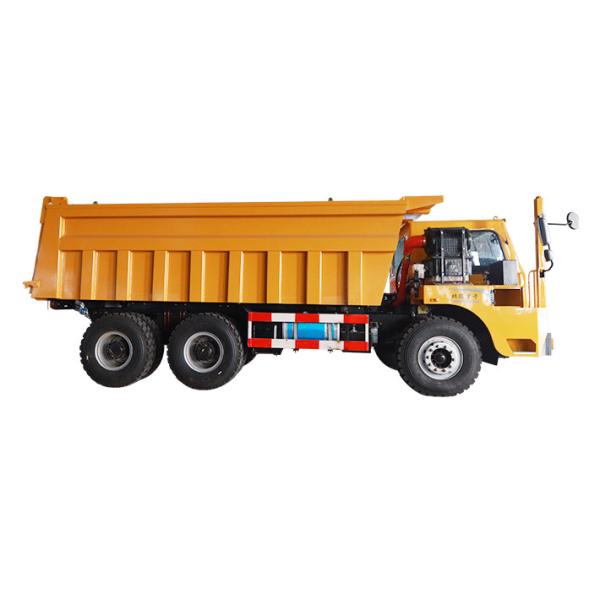

    Heavy Duty 35 Tone Underground Dump Truck Yellow Tipper Truck 276kW

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-35Q
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Heavy Duty 35 Tone Underground Dump Truck Yellow Tipper Truck 276kW

    Product Features of 35 Tons Underground Mining 6*4 Dump Truck


    The Beijun underground tunnel dump truck is specifically designed for excellent trafficability, with a compact structure and small turning radius that make it highly maneuverable in narrow spaces inside the roadway ramp. This makes it a flexible option for operations in confined underground areas.


    Safety is a top priority for the Beijun truck, with improved lamps and electrical components, enhanced waterproofing and moisture-proofing capabilities, and dedicated anti-slip tires. These features enable the truck to navigate the humid and poorly-lit underground environment with ease, while also providing strong obstacle-crossing capabilities and high safety standards.


    The Beijun underground tunnel dump truck is equipped with strong power, including large torque, excellent grade, and starting performances. This enables it to handle heavy loads and steep inclines with ease, making it a reliable choice for mining companies looking to improve their efficiency and productivity.


    The truck's strong bearing capacity, which is 1.5 times that of an ordinary road vehicle, further adds to its capabilities. This is due to the scientific configuration and design of the complete dump truck, which is based on the mining vehicle design concept and optimized for maximum performance in underground mining operations.

    Product parameters of 35 Tons Underground Mining 6*4 Dump Truck


    ModelUQ-35Q
    Engine ModelYC6MK375-T300
    Engine Power276kW
    Total Dimension7748x2500x2700
    Transmission Model10JS220
    Transmission Gear10 Forward Gear, 2Back Gear,Rear High Speed Controller
    Drive Mode6x4
    Front Axle ModelStyer Axle
    Rear Axle ModelStyer Axle
    Tire Model12.00R20
    No.of Bottom Spring PlateFront 11 PCS, Rear 12 PCS
    Dimension of Bottom Spring PlateFront 90*16
    Rear 90*24
    Size of the Bucket:Length×width×height5400x2500x1350mm
    Type of BucketRight Angle Type
    Thickness of Bucket Steel Platebottom 10mm side 8mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinClosed Cabin
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity35 Tons
