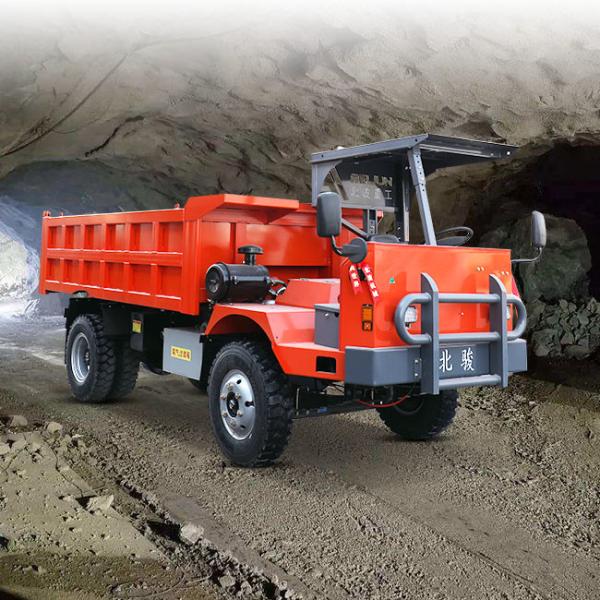

    Capacity 12 Tons Underground Mining Truck 4x2 Drive

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-12
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 7-15days
    • Product Details
    • Company Profile

    Capacity 12 Tons Underground Mining Truck 4x2 Drive


    Product parameters of 12 tons Underground Mining Truck


    1. Improved design of main structure like two and half beam to assure large load and security;
    2. Improved design of power supply and distribution system to achieve lower fuel consumption and more driving force;
    3. Best diesel engine and battery group supplier to assure a robost performance;
    4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
    5. Large capacity is put to use for fuel tank, driving mileage is long.
    6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.


    ModelUQ-12
    Engine ModelYUCHAI 4102 with Turbocharge
    Engine Power81KW/110HP
    Total Dimension5000*2000*1700mm
    Transmission ModelWanliyang 545
    Transmission Gear5 Forward Gear, 1Back Gear,Rear High Speed Controller
    Drive Mode4x2
    Front Axle Model1098
    Rear Axle Model1098
    Tire Model825-16 Radial steel tire,
    Rear Double Tyre One Side,
    No.of Bottom Spring PlateFront 10 PCS, Rear 10 PCS, Spare 6PCS
    Dimension of Bottom Spring PlateLength 70mm, Width 10mm
    Size of the Bucket:Length×width×height3400mm*2000mm*700mm
    Type of BucketU-type
    Thickness of Bucket Steel Platebottom 8mm side 6mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinCanopy
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity12 Tons
